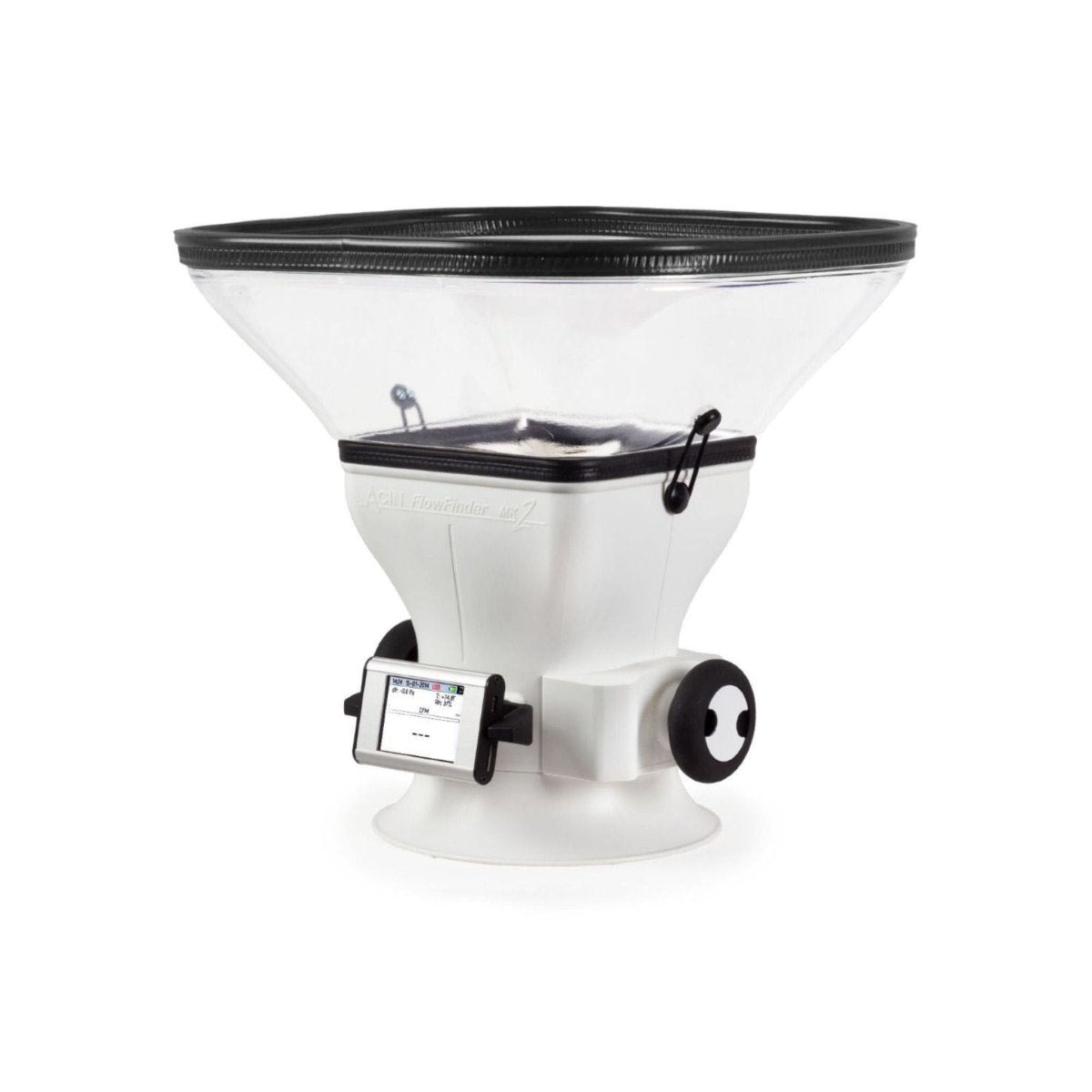

FLOW FINDER MK2

$ 3,950.00

The FlowFinder is a powered flow hood that works well in all situations. When the duct pressure is low, it zeros the pressure across the measurement plane very accurately so that system characteristics do not change.  All powered flow hoods do this fairly well on return/exhaust flows. The FlowFinder is unusual in that it’s zeroing goes down to 1/100 Pa.  Most are only good around zero to about 2/10 Pa making the FlowFinder exceptional where pressures are low or where there is an alternative route for the air to flow. It is also better than the rest at supply flows because it separates the jets experienced in the supply direction from the flow measurement. The flow is then measured by an onboard fan that knows exactly what its inlet pressure is and can determine flow accurately using rpm and pressure after it’s been stabilized.

In difficult situations, the FlowFinder will still maintain its 3% accuracy while any passive flow hood can get 20 to 50% errors. LBL’s study shows this well.

The FlowFinder measures 6 to 326 CFM in full zero balance mode and up to 503 CFM in compensated mode.  It is super light and small and can measure kitchen exhaust, HRV flows in tight places.

  • FlowFinder MK2 Package

    • FlowFinder MK2

    • Large Flow Hood

    • Regular Flow Hood

    • Battery Charger

    • System Accessory Case

    • User Manual
