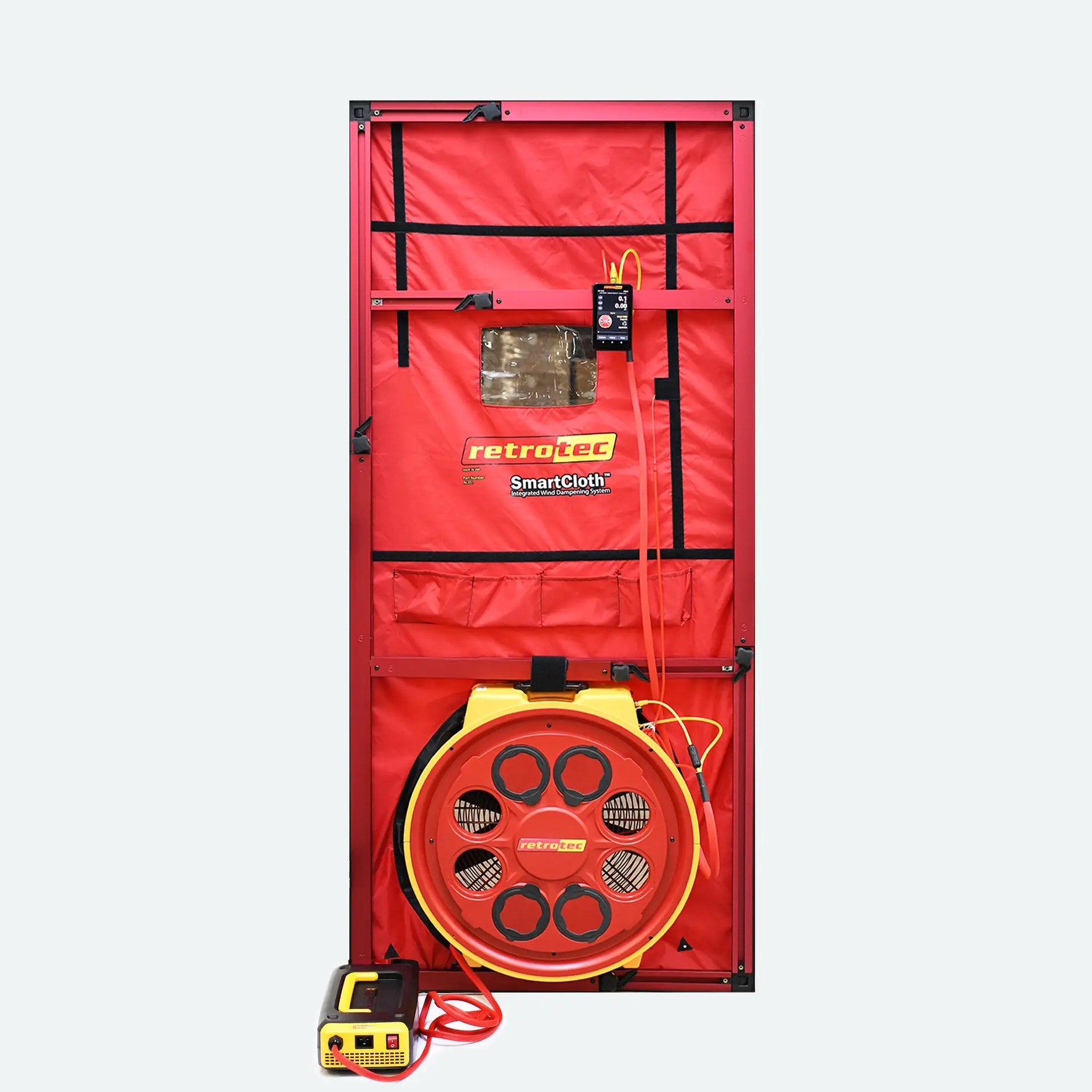

Retrotec 7100 series blower door with SmartCloth and frame
Technician running a Retrotec 7100 series blower door test
Retrotec 7000 Series fan with power supply
Retrotec 7100 series blower door with SmartCloth and frame
Technician running a Retrotec 7100 series blower door test
Retrotec 7000 Series fan with power supply

Retrotec 7110 Blower Door System | Large Frame

Retrotec 7110 Blower Door System: The 7000 Series Fan with Large SmartCloth™ & Large Frame The 7110 is Retrotec's 7100 Blower Door System configured with...
$ 8,600.00
$ 8,600.00
Configuration: AC Drive (Plug-In) with DM32X
Shipping & Return
Shipping & Return
x

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Related Products

Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00
Example product title
From $ 6,850.00
From $ 6,850.00

Recently Viewed Products

Retrotec 7110 Blower Door System: The 7000 Series Fan with Large SmartCloth™ & Large Frame

The 7110 is Retrotec's 7100 Blower Door System configured with the Large SmartCloth™ and Large Aluminum Frame for oversized doorways. It's built around the all-new 7000 Series fan: lighter, more powerful, and the first Retrotec system available with either plug-in or battery power.

Key Features

  • Remarkably light: 23 lb (10.4 kg), over 30% lighter than previous 33.5 lb fans
  • Extremely powerful: higher CFM @ 50 Pa than the Model 5000, and in many cases more than the 6000
  • Optional battery power: test anywhere, no on-site power needed
  • Auto-tip sensor: built-in accelerometer shuts the fan off if tipping is detected
  • Electronic Speed Control with auto braking; fans never run backwards in multi-fan tests
  • Large SmartCloth™ with integrated bias pressure tubing to dampen wind effects

What's Included

  • 7000 Series Fan Set (calibrated fan, High Power Drive or Portable Battery, Range Ring A, B8 Plate, 8 x 4" blank plugs, fan cover, power cord, tubing kit, umbilical, calibration report)
  • Large SmartCloth™ door panel and Large Aluminum Frame with case
  • DM32X Gauge Package with ISO 17025 calibration (not included with the No Gauge option)
  • Fan case and system accessory case

7000 Series Fan Specifications

  • Max flow @ 50 Pa: 7,358 CFM (120V); 8,413 CFM (battery)
  • Max flow, free air: 7,850 CFM (120V); 8,900 CFM (battery)
  • Min flow: down to 8 CFM with optional Range 29
  • Size: 22" inlet x 9.75" long x 25" tall; fan weight 23 lb
  • Battery runtime: 24 min at 100%, 88 min at 50%; 4.5 hr full charge
  • Flow accuracy: ±5%

No Gauge option: for professionals who already own a DM32X gauge.
