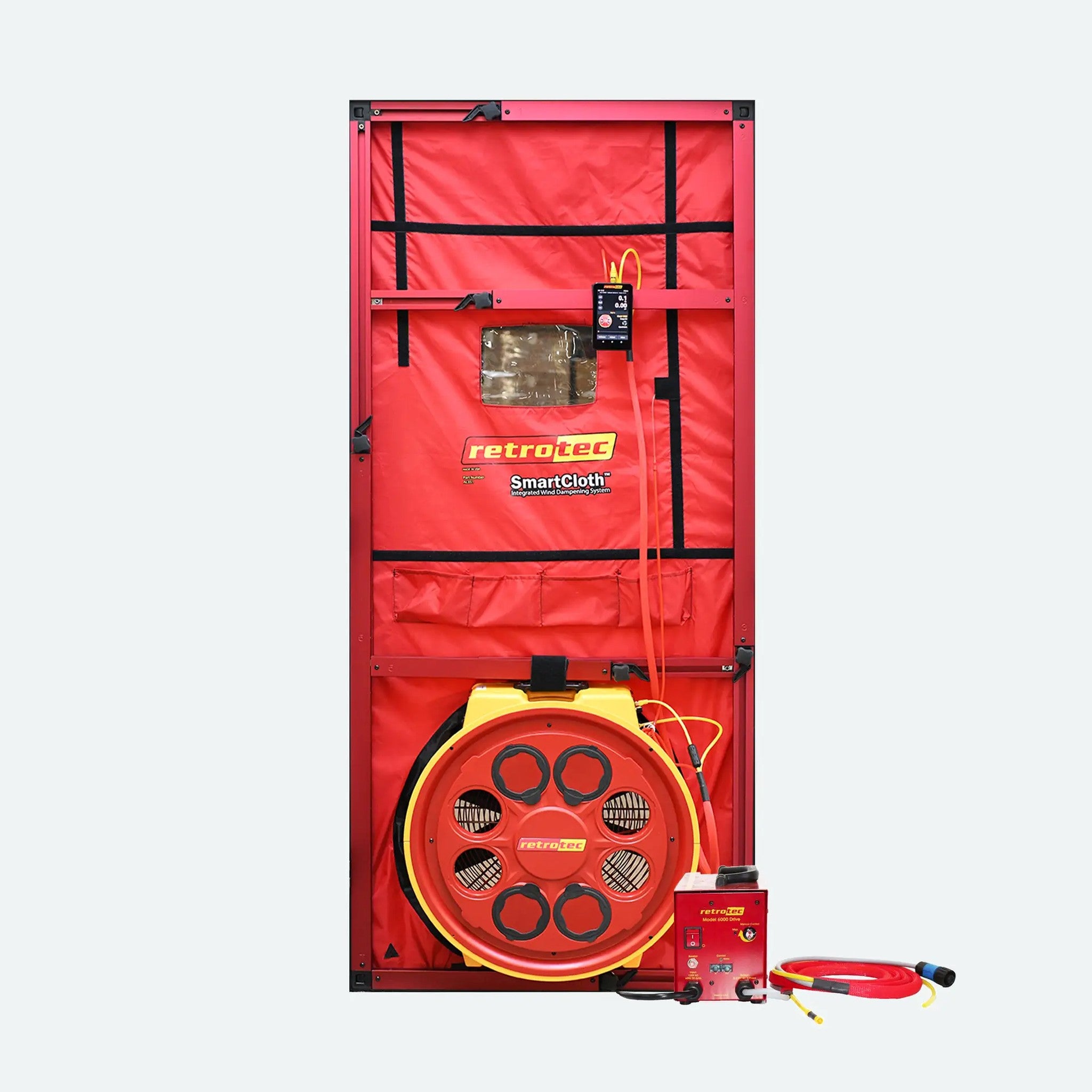

Retrotec 6100 series high power blower door
Technician setting up a Retrotec 6100 series blower door
Retrotec 6100 series blower door test in progress
Retrotec 6100 series high power blower door
Technician setting up a Retrotec 6100 series blower door
Retrotec 6100 series blower door test in progress

Retrotec Blower Door | 6110 Series | Hi-Power Large Frame

Retrotec 6110 Blower Door System: Double the Power, Sized for Oversized Doorways The 6110 is Retrotec's high-power 6100 system configured with the Large SmartCloth™ and...
$ 7,250.00
$ 7,250.00
Shipping & Return
Shipping & Return
x

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Related Products

Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00
Example product title
$ 7,250.00
$ 7,250.00

Recently Viewed Products

Retrotec 6110 Blower Door System: Double the Power, Sized for Oversized Doorways

The 6110 is Retrotec's high-power 6100 system configured with the Large SmartCloth™ and Large Aluminum Frame. With double the power of the Model 5100, it handles everything from very leaky warehouses to very tight commercial buildings, in doorways too big for a standard frame.

Key Features

  • High airflow: up to 7,700 CFM @ 50 Pa
  • Wide range: 6 standard flow ranges plus 3 optional low-flow ranges
  • Quick-connect large frame with an extra crossbar for stability and gauge mounting
  • Large SmartCloth™ with built-in bias pressure tubing to dampen wind
  • DM32X touchscreen gauge included
  • 10-year fan warranty

What's Included

  • 6000 Series Fan Set (fan, High Power Drive, Range Ring A, B8 Plate, 8 x 4" blank plugs, tubing kit, umbilical, fan cover, power cord, calibration report)
  • Large SmartCloth™ and Large Aluminum Frame with case
  • DM32X Gauge Package with ISO 17025 calibration
  • Fan case and system accessory case

6000 Series Fan Specifications (60 Hz)

  • Max flow: 8,100 CFM free air; 7,700 CFM @ 50 Pa; 7,400 CFM @ 75 Pa
  • Min flow @ 50 Pa: 95 CFM (B1); down to 9 CFM with optional Range 29
  • Size: 22" inlet x 9.75" long x 25" tall; 33.5 lb (15.2 kg)
  • Power: 120V @ 60 Hz, 22.0 A
  • Accuracy: ±5%; calibration interval 5 years
