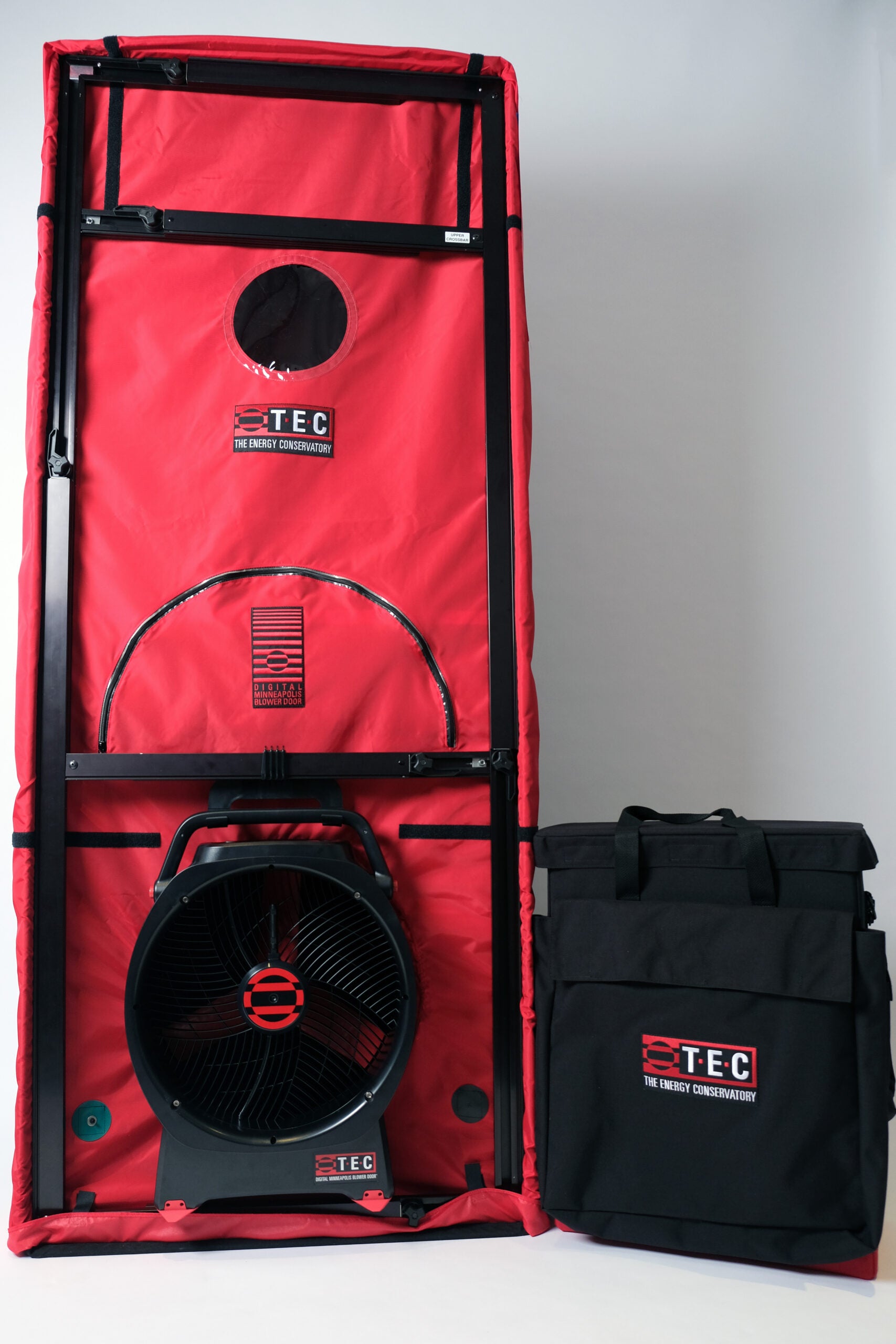

Model 5 Digital Minneapolis Blower Door in panel with case
Model 5 Digital Minneapolis Blower Door fan front
Model 5 Digital Minneapolis Blower Door fan angle

Model 5 Digital Minneapolis Blower Door™ System (Pre-Order)

PRE-ORDER: The Model 5 is not shipping yet. TEC is taking pre-orders now, and your order ships direct from The Energy Conservatory as soon as...
$ 5,830.00
$ 5,830.00
Gauge: DG-8 Gauge
Battery: Include Battery

PRE-ORDER: The Model 5 is not shipping yet. TEC is taking pre-orders now, and your order ships direct from The Energy Conservatory as soon as it is released. Questions about timing? Contact us before you order.

The Model 5 Digital Minneapolis Blower Door™

Cordless. Wireless. Tubeless.

The Model 5 Digital is the all-new blower door from The Energy Conservatory (TEC). There are no gauge cables to run and no pressure tubing to manage, so setup is faster and there is less to trip over on the job. It is light enough to carry and maneuver easily, and a new smart field check confirms the fan is reading accurately before you start a test.

It is the system of choice for utility DSM programs, energy raters, HVAC contractors and weatherization professionals.

Features

  • Includes everything required for fully automated testing
  • Automatic ring detection: the system knows which flow ring is installed
  • Wireless integrated speed control
  • Tubeless flow sensor design: no pressure tubing between fan and gauge
  • Smart field check verifies the fan is reading accurately before each test
  • Durable injection-molded fan housing with a 5-year TEC repair warranty
  • Adjustable aluminum frame for quick, easy setup
  • Integrated battery option for cordless operation, or run it from the included 14′ power cord

Specifications

Flow range (included rings) 20 to 3,525 CFM
Low-flow range Down to 2.4 CFM with Flow Ring D (sold separately)
Fan speed control Wireless, integrated
Flow sensing Tubeless, with automatic ring detection
Compatible gauges DG-8, DG-1000
Power 14′ power cord; integrated battery optional
Fan housing Injection-molded, 5-year TEC repair warranty
Door frame Adjustable aluminum
Carry options Standard carry bag; Pro hands-free backpack available

Choose Your Configuration

  • Gauge: DG-8, DG-1000, or no gauge if you already own a DG-8 or DG-1000.
  • Battery: add the integrated battery for cordless testing, or skip it and run on the power cord.
  • Pro hands-free backpack, Flow Ring D, or custom fan calibration for a specific testing standard: contact us and we will add it to your order.

Ships direct from The Energy Conservatory once released. Specifications from TEC; subject to change before release.
