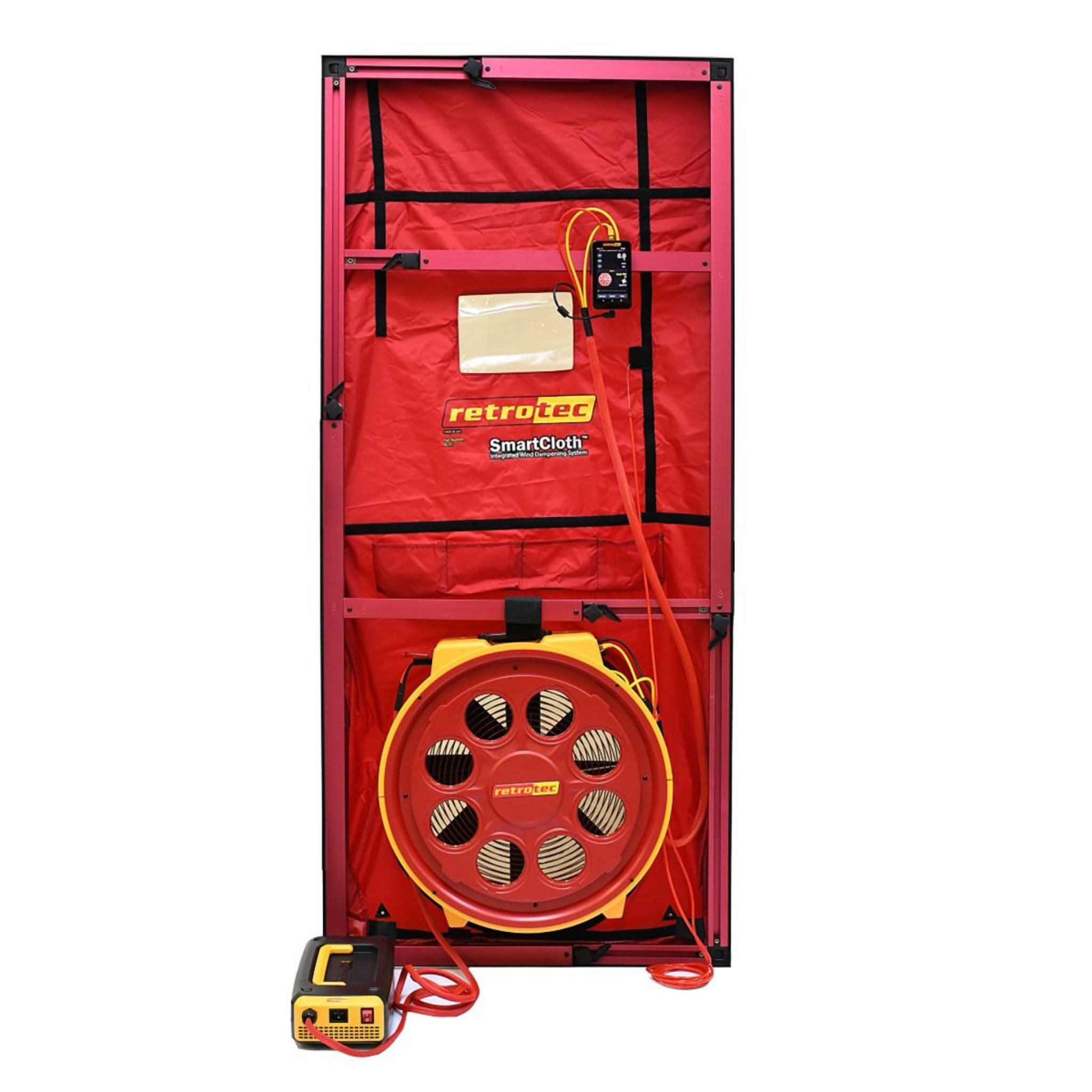

Retrotec 7100 Blower Door System

A Fan Reimagined The Retrotec 7100 Blower Door System redefines airtightness testing with its lightweight design and powerful airflow. Weighing only 23 lbs (10.4 kg),...
$ 8,400.00
$ 8,400.00

Related Products

Recently Viewed Products

A Fan Reimagined

The Retrotec 7100 Blower Door System redefines airtightness testing with its lightweight design and powerful airflow. Weighing only 23 lbs (10.4 kg), it is over 30% lighter than its predecessors while offering greater performance than the Model 5000.

Key Features:

  • 30% lighter than other fans on the market
  • Higher CFM @ 50Pa than the Model 5000 and even the 6000 in some scenarios
  • Built-in accelerometer acts as an auto-tip sensor, shutting off the fan if tipping is detected
  • Electronic Speed Control (ESC) for precise speed adjustments
  • New safety feature enables auto braking in case of fan failure
  • Paired with Retrotec’s DM32X Gauge for real-time graphing, data logging, and training apps

Included Components:

  • 7000 Series Fan Set: High-Power Drive, Range Ring A, B8 Plate, 8 x 4" Blank Plugs, and Fan Covers
  • DM32X Gauge Package: DM32X Gauge, USB-C Charging Cable, Cat5 Cable, Gauge Case, Magnetic Clip, Calibration Report
  • SmartCloth Door Panel & Frame: Aluminum Frame, SmartCloth, Fan Crossbar Strap, Case
  • System Accessory Case, Fan Case, and Blower Door Tubing Kit
  • Umbilical for 7000 Series Fan, 7 ft (2m)

Performance Specifications:

  • Max Airflow: 7,850 CFM @ Free Air, 7,358 CFM @ 50 Pa
  • Minimum Airflow: As low as 8 CFM with Optional Range 29
  • Fan Dimensions: 22" inlet diameter, 9.75" length, 25" height
  • Fan Weight: 23 lbs (10.43 kg), Fan + Ranges: 25.4 lbs (11.52 kg)
  • Power Supply Weight: 13.4 lbs (6.08 kg)
  • Flow Accuracy: +/- 5%

Upgrade your blower door testing experience with the Retrotec 7100 Blower Door System—a new benchmark in precision, portability, and performance.
